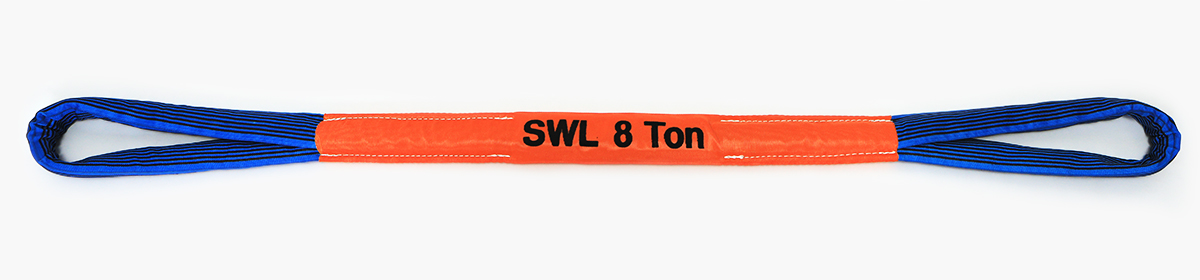

Polyester Round Sling
I Type
I Type
产品的特点
- 两边有环
- 插入了躯干管
- 长度长也不会扭曲,使用起来容易
技术规格
| Eye Color | Body Color | Product Cord | WLL | Sleeve width (mm) | Body width(mm) | Weight at 1M EWL(g) |
| YL-P-1 | 1Ton | 45 | 65 | Endless Type Weight +10% | ||
| YL-P-2 | 2Ton | 55 | 65 | |||
| YL-P-3 | 3Ton | 65 | 75 | |||
| YL-P-4 | 4Ton | 70 | 85 | |||
| YL-P-5 | 5Ton | 80 | 90 | |||
| YL-P-6 | 6Ton | 80 | 90 | |||
| YL-P-7 | 7Ton | 80 | 105 | |||
| YL-P-8 | 8Ton | 80 | 105 | |||
| YL-P-9 | 9Ton | 95 | 120 | |||
| YL-P-10 | 10Ton | 95 | 120 |
请咨询10吨以上的产品。
使用限制负载
| Color | S.W.L [Safety Working Load] (Ton) | Working Load Limits | Safety Factor 7:1 Breaking Strength (Ton) | |||
|---|---|---|---|---|---|---|
 100% |
 80% |
 200% |
 140% |
|||
| 1 | 1 | 1 | 2 | 1 | 7 | |
| 2 | 2 | 2 | 4 | 3 | 14 | |
| 3 | 3 | 2 | 6 | 4 | 21 | |
| 4 | 4 | 3 | 8 | 6 | 28 | |
| 5 | 5 | 4 | 10 | 7 | 35 | |
| 6 | 6 | 5 | 12 | 8 | 42 | |
| 7 | 7 | 6 | 14 | 10 | 49 | |
| 8 | 8 | 6 | 16 | 11 | 56 | |
| 9 | 9 | 7 | 18 | 13 | 63 | |
| 10 | 10 | 8 | 20 | 14 | 70 | |
| 20 | 20 | 16 | 40 | 28 | 140 | |
| 30 | 30 | 24 | 60 | 42 | 210 | |
| 40 | 40 | 32 | 80 | 56 | 280 | |
| 50 | 50 | 40 | 100 | 70 | 350 | |
| 60 | 60 | 48 | 120 | 84 | 420 | |
| 70 | 70 | 56 | 140 | 98 | 490 | |
| 80 | 80 | 64 | 160 | 112 | 560 | |
| 90 | 90 | 72 | 180 | 126 | 630 | |
| 100 | 100 | 80 | 200 | 140 | 700 | |
| 110 | 110 | 88 | 220 | 154 | 770 | |
| 120 | 120 | 96 | 240 | 168 | 840 | |
| 130 | 130 | 104 | 260 | 182 | 910 | |
| 140 | 140 | 112 | 280 | 196 | 980 | |
| 150 | 150 | 120 | 300 | 210 | 1050 | |
| 160 | 160 | 128 | 320 | 224 | 1120 | |
| 170 | 170 | 136 | 340 | 238 | 1190 | |
| 180 | 180 | 144 | 360 | 252 | 1260 | |
| 190 | 190 | 152 | 380 | 266 | 1330 | |
| 200 | 200 | 160 | 400 | 280 | 1400 | |
